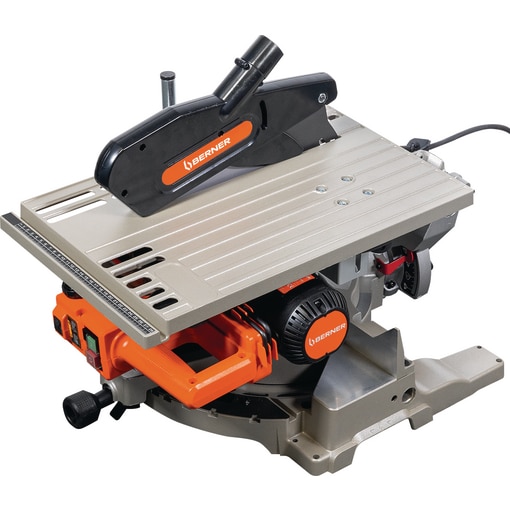

Mitre saw and table

Art.No. 243306

mail address of recipient(s)

separate multiple mail address using a comma.

commentary:

* mandatory fields

Details

Advantages:

Combination saw with crosscut and ripping capabilities for sawing wood, MDF, plywood, laminate, skirting boards
Innovative guard design maximises safety and cutline visibility
Powerful 1600 watt motor to meet the needs of the most demanding applications
Includes LED shadow Line cut technology
- For accurate alignment and a precise cut
Fully adjustable stainless steel mitre detents
- Deliver accuracy over the life of the tool
Precision cast aluminium base and table top
- Guarantees high precision cuts in both cutting modes
Lightweight and easily transported
High and stable back fence increaes accuracy in all mitre applications
Unique design gives excellent visibility in both rip and mitre modes
All-metal upper fence with positive lock from maximum accuracy

Delivery

Incl. saw blade Ø 305 mm, rip fence, table saw blade guard and material clamp

Technical Data

Property	Value
Length x height x depth	500 x 485 x 600 mm
Cutting range 45°/45° from - to	55 x 110 mm
Cutting range 45°/90° from - to	85 x 110 mm
Cutting range 90°/45° from - to	55 x 160 mm
Cutting range 90°/90° from - to	85 x 160 mm
Version	Carton
Sound pressure level (K = 3 dB(A))	97 dB(A)
Sound power level (K = 3 dB(A))	105 dB(A)
Weight	19.5 kg
Power Output	933 W
Nominal Power Consumption	1600 W
Idle-Running Speed, Max	3300 r/min
Voltage	230 V
Saw Blade - Ø	305 mm
Saw Blade Drilling	30 mm
Cutting Area At 90°/90°, To	160 mm
Cutting Area At 90°/90°, From	85 mm
Cutting Area At 45°/90°, To	110 mm
Cutting Area At 45°/90°, From	85 mm
Cutting Area At 90°/45°, To	160 mm
Cutting Area At 90°/45°, From	55 mm
Cutting Area At 45°/45°, To	110 mm
Cutting Area At 45°/45°, From	55 mm
Depth Of Cut Cross Cutting Mode 90°	85 mm
Depth of cut at chop-sawing 90° / 45°	85 mm
Depth Of Cut At Table Operation 90°	51 mm
Depth od cut at table operation 90° / 45°	51 mm
Height	485 mm
Length	500 mm
Depth	600 mm
Saw Blade Width	1.8 mm
Inclination Of Kapparms,From	0 °
Inclination Of Kapparms, To	48 °
Tendency of comb arm	0 - 48 °
Mitre Of Rotary Table Right, From	0 °
Mitre Of Rotary Table Right, To	50 °
Mitre of rotary disc right	0 - 50 °
Mitre Of Rotary Table Left, From	0 °
Mitre Of Rotary Table Left, To	50 °
Mitre of rotary disc left	0 - 50 °
Table size	85 mm
